Sean Gelael Tampil di Asian Le Man Series - Race 1 dan 2 di Dubai pada 13 - 14 Februari 2021 sedangkan Race 3 dan 4 di Abu Dhabi 19 dan 20 Februari 2021.

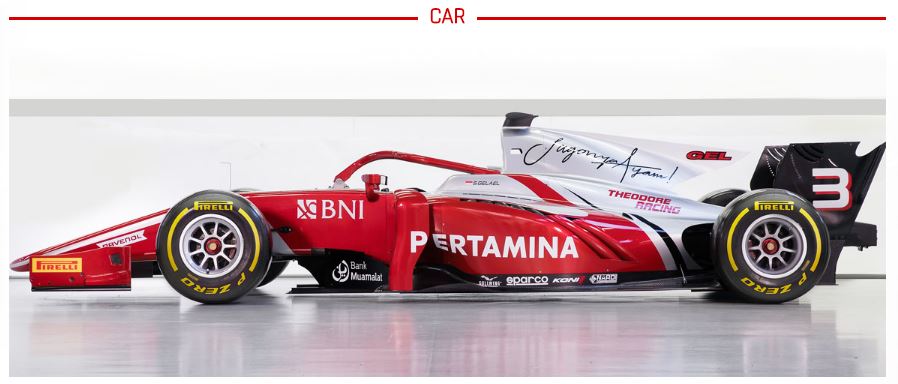

Specification Car Formula 2 Sean Gelael 2018
DIMENSIONS
Overall length: 5224 mm
Overall width: 1900 mm
Overall height: 1097 mm (including FOM roll hoop camera)
Wheelbase: 3135 mm
Overall weight: 720 kg (driver on-board)
ENGINE
V6 - 3.4 litre single turbo charged Mecachrome engine.
Rated to 620 HP @ 8750 rpm.
Fly by wire accelerator system.
Rebuild after 8000 km.
Maximum Torque 600 Nm.
PERFORMANCES
A
cceleration: 0 - 100 km/h, 2.90 sec
Acceleration: 0 - 200 km/h, 6.60 sec
Maximum speed: 335 km/h (Monza aero configuration + DRS)
Max. braking deceleration -3.5 G
Max. lateral acceleration +/- 3.9 G
SAFETY STANDARDS
Full FIA F1 2017 safety standards.
Halo F1 specification.
MONOCOQUE AND BODYWORK
Survival cell - Sandwich Carbon/aluminium honeycomb structure made by Dallara.
Front and rear wing - Carbon structures made by Dallara.
Bodywork - Carbon - Kevlar honeycomb structures made by Dallara.
DRS
Same functionality of DRS used in Formula One.
Hydraulic activation.
GEARBOX
6-speed longitudinal Hewland sequential gearbox.
Electro-hydraulic command via paddle shift from steering wheel.
ZF SACHS Carbon clutch.
No on-board starter, anti-stall system.
Non hydraulic ramp differential.
FUEL CELL
FIA Standard.
Premier FT5 125 litres.
ELECTRONIC FEATURES
Magneti Marelli Marvel SRG 480 ECU/GCU including data logging system.
Magneti Marelli PDU 12-42 power supply management unit.
CAN data acquisition pre-equipment.
Beacon receiver.
SUSPENSION
Double steel wishbones, pushrod operated, twin dampers and torsion bars suspension (F) and spring suspension (R).
Adjustable ride height, camber and toe.
Two way (F) / Four way (R) adjustable Koni dampers.
Adjustable anti-roll bar (Front/Rear).
BRAKES
6 pistons monobloc Brembo callipers.
TBC carbon-carbon brake discs and pads.
WHEELS AND TYRES
F1 2016 standard wheel dimension.
O.Z. Racing.
Magnesium rims
13" x 12" front F1 2016 standard wheel dimension.
13" x 13.7" rear F1 2016 standard wheel dimension.
F2 specific Pirelli slick / wet tyres.
STEERING SYSTEM
Non assisted rack and pinion steering system.
XAP steering wheel with dashboard, marshalling display, gear change and clutch paddles, marshalling & VSC display.
CAMERA EQUIPMENT
Roll hoop, nose cone and face shot camera pre-equipment.
